Sibo занимается потенциометрами и датчиками уже 30 лет.

18LP
18LP

18LP

Linear Wire-wound POT.

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Linear Wire-wound POT.

  • Wirewound

  • With front extended shaft　

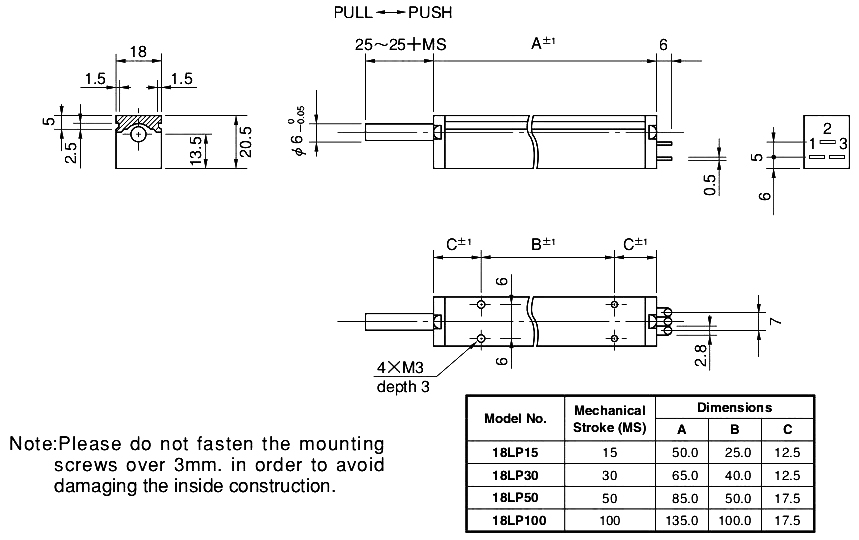

Измерение


Параметр

General Specifications (18LP15)

Standard Resistance Values

10～5KΩ

Total Resistance Tolerance

Standard Class ±5%(J), Precision Class ±3%(H)

Independent Linearity Tolerance

Standard Class ±2.0%, Precision Class ±1.0%

Power Rating

0.3W

Noise

<100ΩE.N.R.

Electrical Stroke

15±0.5mm

Mechanical Stroke(MS)

15mm

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.6N(60gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx. 60g

General Specifications (18LP30)

Standard Resistance Values

20～10KΩ

Total Resistance Tolerance

Standard Class ±5%(J), Precision Class ±3%(H)

Independent Linearity Tolerance

Standard Class ±1.0%, Precision Class ±0.5%

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Stroke

30±0.5mm

Mechanical Stroke(MS)

30mm

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.8N(80gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx. 70g

General Specifications (18LP50)

Standard Resistance Values

50～10KΩ

Total Resistance Tolerance

Standard Class ±5%(J), Precision Class ±3%(H)

Independent Linearity Tolerance

Standard Class ±0.7%, Precision Class ±0.4%

Power Rating

0.75W

Noise

<100ΩE.N.R.

Electrical Stroke

50±0.5mm

Mechanical Stroke(MS)

50mm

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<1N(100gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx. 100g

General Specifications (18LP100)

Standard Resistance Values

50～20KΩ

Total Resistance Tolerance

Standard Class ±5%(J), Precision Class ±3%(H)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.25%

Power Rating

1.0W

Noise

<100ΩE.N.R.

Electrical Stroke

100±0.5mm

Mechanical Stroke(MS)

100mm

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<1N(100gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.140g

Special Specifications Available

Special stroke

Stroke 150mm (S18LP150), stroke 200mm (S18LP200)

Special structure

Sealed type (IP54, The length of "A" is extended by abt. 6mm.)

Special shaft type

Special machining on the shaft

With spring return device

Up to 100mm stroke, Friction is 3N [300gf]. Spring return device is mounted on the outer shaft. For details, please ask us.)
