Palm Grips

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Multi Switch type

  • Knob configured with 6 up to 8 push button switches

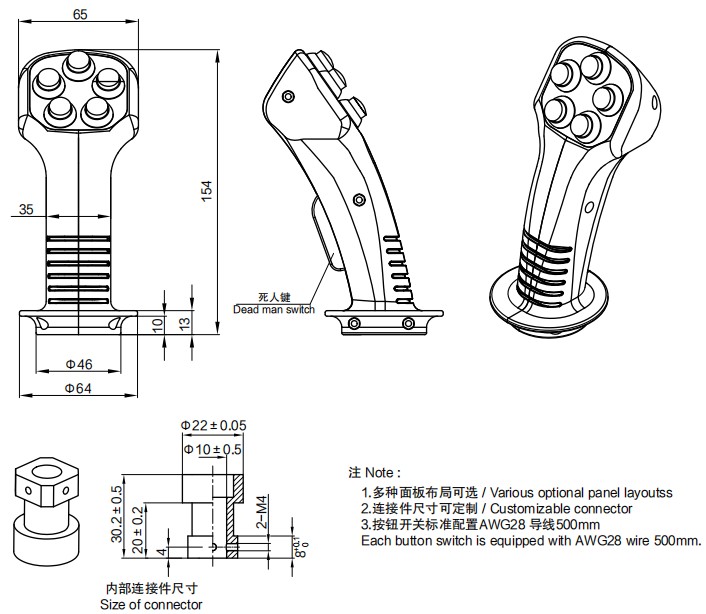

Dimensión


Parámetro

Optional Function

Switch type

6 button switches at most and 1 DEAD-MAN switch

Thumb joystick type

1 thumb joystick, 2 button switches at most and 1 DEAD-MAN switch

Matching joystick

SAKAE: 50JC SENTOP: JP50、JH50；SAKAE: 90JA、90JB ；Other joystick；Be used alone"

Specifications (Thumb Joystick)

Operating force

Approx. 3.1N

Applied voltage

5V±0.01V

Output signal

0～5V（Available for other output ranges）

Life expectancy

>1,000,000

Protection degree

IP68

Electrical Specifications (Switch)

Type

Button switch；DEAD-MAN switch

Rating

48V.D.C. / 0.1A；30V.D.C. / 0.1A

Life expectancy

Approx. 1,000,000；Approx. 1,000,000

Insulation resistance

>1000MΩ (500V.D.C.)；>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.)；1min (600V.A.C.)

Protection degree

IP67 ；IP67
