Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

WDX25
WDX25

WDX25

1-turn Wire-wound POT.

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Wire-wound potentiometer

  • Economy version

  • Bushing mount

  • With stopper

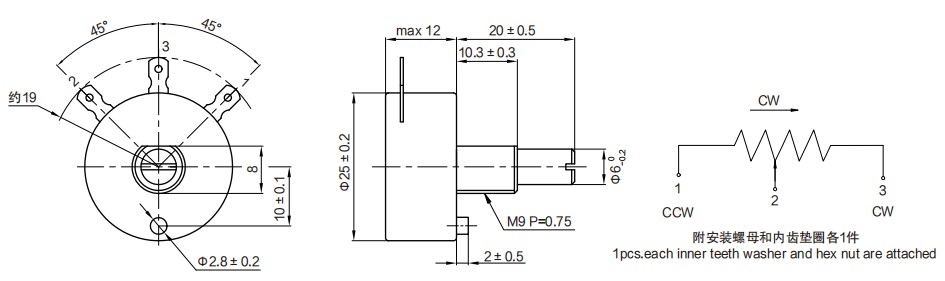

Dimensión


Parámetro

General Mechanical Specifications

Mechanical angle

320º ±5º (with stopper)

Protection degree

IP40

Operating torque

<25mN·m

Life expectancy

200,000

Mass

Approx.25g

Housing material

Plastic

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-50℃～+125℃

Storage temperature range

-50℃～+125℃

General Electrical Specifications

Standard model

WDX25-1K

Resolution

0.19%（1K）、0.26%（2K）、0.19%（5K）、0.15%（10K）

Resistance tolerance

±5%

Independent linearity tolerance

±0.5%

Power rating

1.5W

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

1000V.A.C/1 min

Sliding noise

<100ΩENR

Resistance Temperature Coefficien

±20P.P.M/°C

Special Specifications Available

Other output signals

Available for 100Ω，200Ω，500Ω.

Special mechanical angle

Available for mechanical angle 360º(Endless).

Special shaft

Available for inch Shaft Φ6.35.

Special torque

Low torque (5mN·m).
