Sibo has focused on potentiometers and sensors for 30 years.

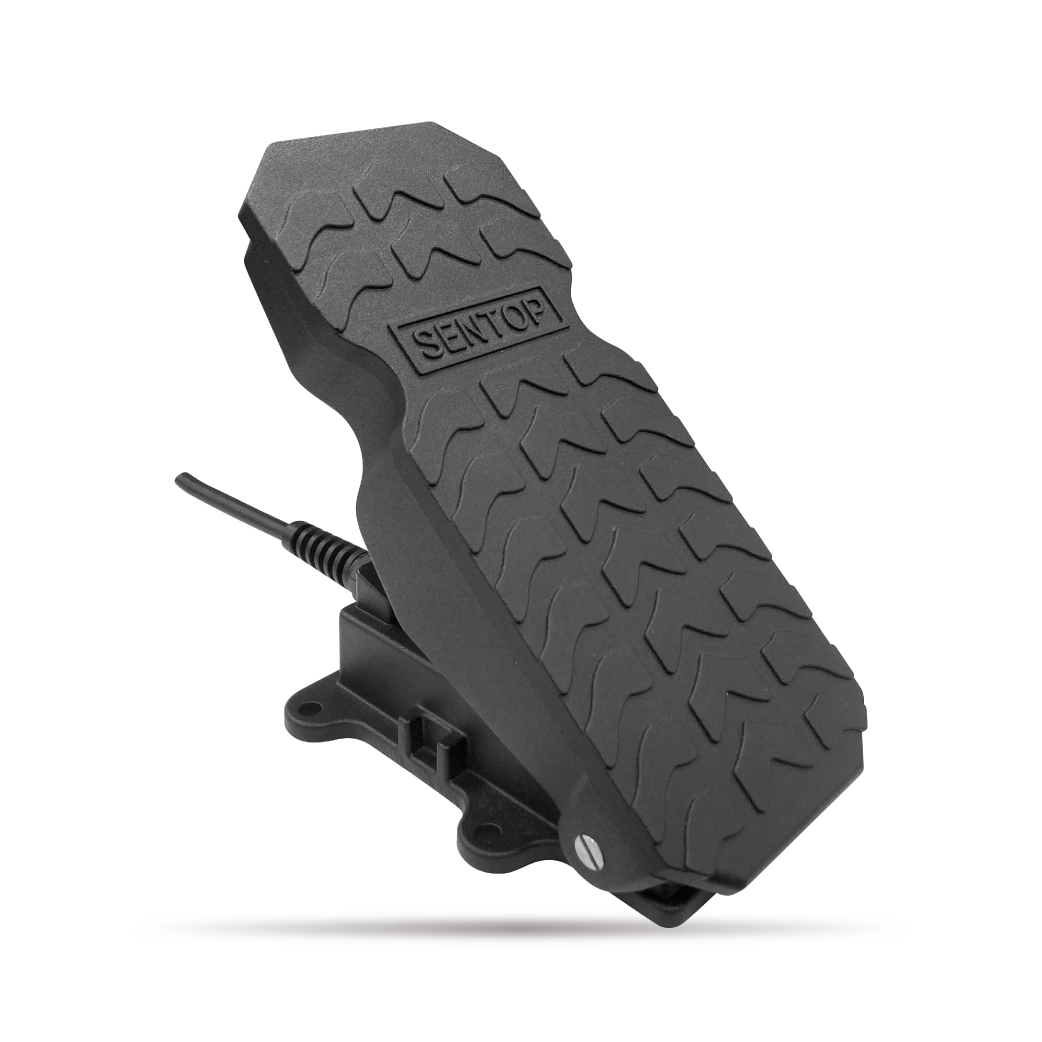

PHF8
PHF8

PHF8

Magnetic-type Pedals

瀏覽量： Time: 2024-08-29

    Characteristics：

  • Hall effect IC type

  • Floor pedal

  • Kick-down device is available

  • Single or double full redundant outputs

  • CANOPEN output

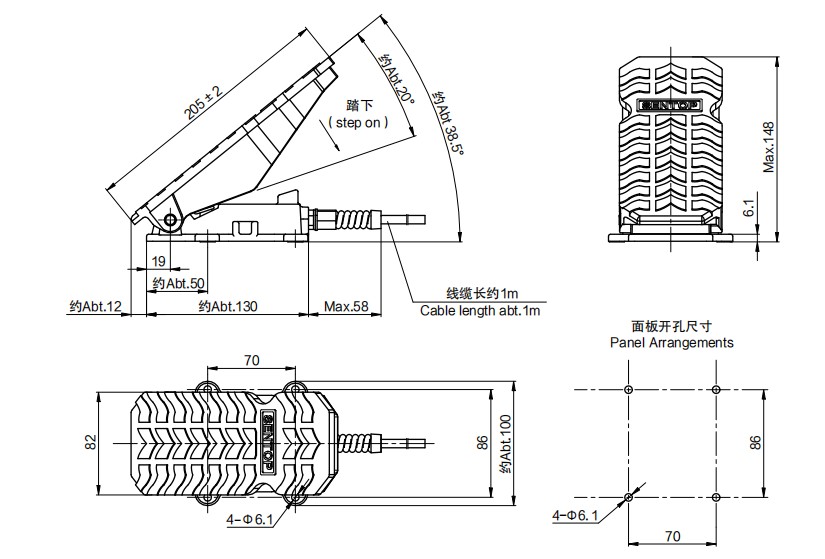

Dimension


Parameter

General Specifications

Operating angle

Approx.20°

Operating force

Approx. 10～60N

Mechanical life expectancy

2,000,000 operations

Operating temperature

-40℃~+85℃

Storage temperature

-40℃~+85℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx.850g

Protection degree

IP65

Electrical Specifications (Hall Effect Potentiometer)

Applied voltage

5V±10%

Output Signal

0~5V

Current consumption (no-load)

<16mA

Output deviation at both ends

<1%.VCC

Load resistance

>100KΩ

Independent linearity tolerance

±3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Electrical Specifications (Switch)

Rating

5A/30V.D.C.

Electrical life expectancy

50,000

Mechanical life expectancy

20,000,000

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (1000V.A.C)

Special Specifications Available

Other output signals

PWM, RS485

Electrical specifications

Special output characteristic, speical cable length, etc.

With connectors

Connector model.1: DTM04-6P; Connector model.2: AMP 174359-2
