Sibo has focused on potentiometers and sensors for 30 years.

IS35
IS35

IS35

Inclinometer Sensor

瀏覽量： Time: 2025-10-16

    Characteristics：

  • Static or dynamic

  • 1 axis or 2 axes

  • Multiple signal outputs

  • Screw mount

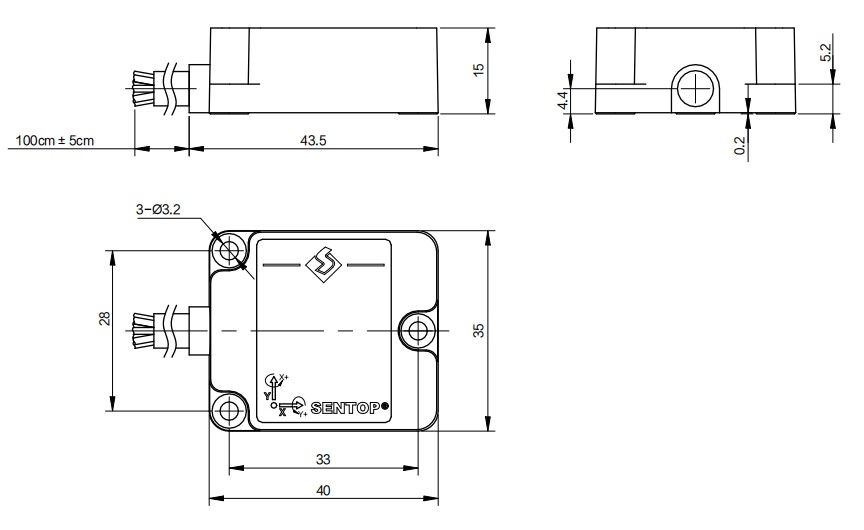

Dimension


Parameter

General Specifications

Range of application

Single axis or horizontal dual axis measurement, static or dynamic mode is available for selection.

Measurement range

1 axis: 360°(±180°) or horizontal dual axis: 180°(±90°)

Mass

Approx.85g

Protection degree

IP67

MTTF

10Year @40℃

Housing material

Aluminum alloy

Resolution

0.08°

Accuracy

±0.1°

Environmental Specifications

Operating temperature range

-40℃～+85℃

Storage temperature range

-40℃～+85℃

Temperature drift

0.01°/℃

Vibration

10g, 10Hz~1.5kHz

Shock

100g, 6ms (EN60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV

EMS durability

100V/m (80MHz～1GHz，1KHz80% 調(diào)幅 Amplitude modulation)

EFT

GB/T 17626.4-2008/IEC61000-4-4: 2004 /Level: 4

Surge

GB/T 17626.5-2008/IEC61000-4-5: 2005 /Level: 4

General Electrical Specifications

Input voltage

3.3~5V, 9~30V, 15~30V

Output signal

Analog 0~5V, 0~10V, 4~20mA, SSI, RS232, RS422, RS485, CAN

Current consumption

<90mA

Power on start-up time

<0.1s

Response time

10ms

Connection

8-core shielded jacketed cable, for pin definition refer to the Terminal Connection Instructions
