Sibo has focused on potentiometers and sensors for 30 years.

SBS80M-32
SBS80M-32

SBS80M-32

Controller

瀏覽量： Time: 2023-01-09

    Characteristics：

  • High reliability, high performance

  • Comply with IEC61131-3 programming standard

  • Support for simulation, breakpoint, flow control, variable tracking and other debugging functions

  • Support CAN-Open protocol

  • Solid aluminum housing, small size, many I/O terminals

  • Cost-effective

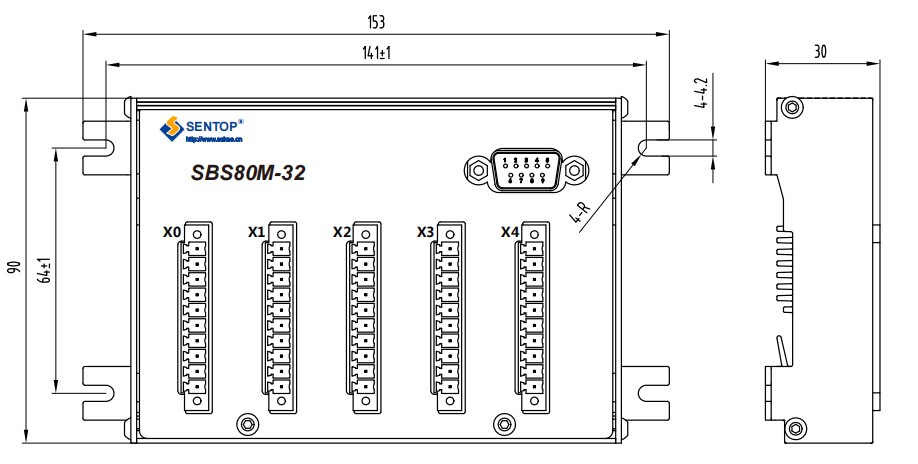

Dimension


Parameter

Technical Specifications

Power supply

8-32V

Configurable input

28 digital signals; 8 analog signals; 2 pulse

Configurable output

8 digital signals (Max. 1.7A per channel); 4 PWM (Max. 1.7A per channel); 5V, 10V reference voltage

Communication

2 CAN bus interface,2 UART serial port

PLC hardware configuration

CPU:Infineon SAK-XE164 80MHz, RAM:32KB + 512KB, FLASH:320KB + 1MB

Programming and debugging environment

Codesys 2.3
